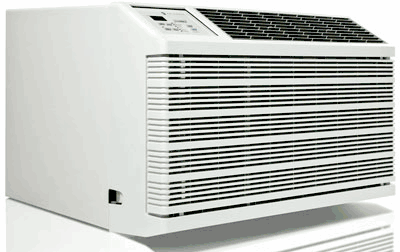

The Friedrich WS13C30 WallMaster is a 12600/12300 BTU Though-Wall Cool Only Room Air Conditioner. The WS13C30 runs on 230/208 Voltage and has an EER of 9.4. The WS13C30 is Energy Star Rated and includes many comfort and convenience features including easy to reach top mount controls, a remote control and a 24 hour programmable timer. This model will fit into an existing 27" wall sleeve including Fedders A and B units. The optional Friedrich WSC wall sleeve measures 27" wide by 16 3/4" high. Purchase the Friedrich WallMaster WS13C30 for your next retrofit or new construction project.

If you have any questions regarding the Friedrich WallMaster WS13C30 please feel free to contact a RoomAire account specialist at 1(800)891-4729.

Features

Environmentally Friendly R-410A Refrigerant Used In All Models

Programmable 24-Hour Timer with Remote Lets you program on/off times and memory back-up saves settings if power is interrupted.

Exact Fit For Fedders A Sleeves. Fits Fedders B Sleeves with Kit.

Solid Side Chassis Allows for installation into thicker walls than standard room air conditioners.

The Most Energy Efficient Solid-Side Air Conditioner Available

MoneySaver Setting Saves energy by turning the fan on and off with the compressor.

The Smart Fan Feature Adjusts the fan speed to maintain the desired temperature.

Easy-to-Clean Filter

3 Speed Fan

Auto Memory Backup

Quick Specs:

Specifications:

• BTU Cooling 12600/11900
• EER 9.4/9.4
• Cooling Amps 6.3/6.7
• Moisture Removal 3.6 Pints/Hour
• Plug Face 6-15P
• Volts 230/208
• Cooling Watts 1340/1266
• Room Air Circulation 290 CFM
• Circuit Breaker Rating 250V-15A

Approximate Weight:

• Unit: 109 lbs
• Shipping: 120 lbs

Approximate Dimensions:

• Depth: 21"
• Height: 15.75"
• Width: 26.50"

Warranty Information:

• Manufacturer Warranty (authorized online retailer): 1 Year Parts And Labor

Download Specs

Click To Download Friedrich WallMaster Manual(PDF)
