Friedrich M24DYF 24,000 BTU Dual Zone Wall-Mounted Ductless Split System with Heat Pump, Advanced Inverter Technology and Low Ambient Operation (2 x MW12Y3FM Indoor /MR24DY3F Outdoor)
Product Description

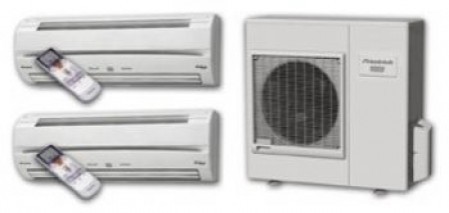

Two indoor wall-mounted units connected to a single outdoor unit.
Use for two adjoining rooms, long narrow rooms or for backup systems in remote areas. Each indoor unit has its own remote control and is independently controlled for optimum zone cooling flexibility.
The M24DYF Ductless Split System features a new level of system flexibility and control at your fingertips with the Advanced Inverter Technology. Inverter Technology lets you reach the desired temperature FASTER, maintain it MORE ACCURATELY, and REDUCE energy costs. It eliminates the constant compressor start-ups/ shut-downs required to maintain the set temperature with traditional technology. It controls compressor rotation speed precisely and adjusts capacity to meet demand, which in turn reduces energy consumption.
Inverter Technology allows each system to adjust capacity and cooling output to provide only the amount of cooling needed at a given time. For example, an 18,000 BTU/h system will operate even more efficiently as a 15,500 if that is all that's needed.
All of the Friedrich ductless split systems exceed the new 13.0 SEER requirements. And, a full one-third of the models have super high ratings ranging from 16.5 to 19.0 SEER.
Units are fully programmable, so setting and keeping the desired comfort level is a snap. Smart features like "Sleep Timer" and "Energy Saver" allow the user to program the unit for optimum energy savings. The continuous "Air Sweep" auto louvers gently distribute cool or warm air throughout the room.
A new level of system flexibility and control is at your fingertips on Friedrich single and multi-zone systems. You'll have more options for optimum comfort, control and energy savings.
Over 20 single, dual, tri- and quad-zone systems provide a wide range of heating and cooling options for even the toughest remodels, additions and improvements.
The Friedrich ductless split systems have the advantages of a ducted installation without the high material and labor costs. Absolutely no ductwork is required, so most systems can be installed and running in a few hours.
Residential/Commercial Applications
2 x MW12Y3FM Indoor Unit /MR24DY3F Outdoor Unit Features Swing louvers (up/down) Continuous 'Air Sweep' Auto-restart Auto-shut flaps Washable air filters Removable front grille Low-ambient operation Wireless Remotes Remote for each indoor unit 24-hour timer and sleep timer Auto/cool/dry/fan/heat modes Four fan speeds heating or cooling: high/medium/low/quiet, plus auto-fan Secured remote control holder Four different transmitter codes
Use for two adjoining rooms, long narrow rooms or for backup systems in remote areas. Each indoor unit has its own remote control and is independently controlled for optimum zone cooling flexibility.
The M24DYF Ductless Split System features a new level of system flexibility and control at your fingertips with the Advanced Inverter Technology. Inverter Technology lets you reach the desired temperature FASTER, maintain it MORE ACCURATELY, and REDUCE energy costs. It eliminates the constant compressor start-ups/ shut-downs required to maintain the set temperature with traditional technology. It controls compressor rotation speed precisely and adjusts capacity to meet demand, which in turn reduces energy consumption.
Inverter Technology allows each system to adjust capacity and cooling output to provide only the amount of cooling needed at a given time. For example, an 18,000 BTU/h system will operate even more efficiently as a 15,500 if that is all that's needed.
All of the Friedrich ductless split systems exceed the new 13.0 SEER requirements. And, a full one-third of the models have super high ratings ranging from 16.5 to 19.0 SEER.
Units are fully programmable, so setting and keeping the desired comfort level is a snap. Smart features like "Sleep Timer" and "Energy Saver" allow the user to program the unit for optimum energy savings. The continuous "Air Sweep" auto louvers gently distribute cool or warm air throughout the room.
A new level of system flexibility and control is at your fingertips on Friedrich single and multi-zone systems. You'll have more options for optimum comfort, control and energy savings.
Over 20 single, dual, tri- and quad-zone systems provide a wide range of heating and cooling options for even the toughest remodels, additions and improvements.
The Friedrich ductless split systems have the advantages of a ducted installation without the high material and labor costs. Absolutely no ductwork is required, so most systems can be installed and running in a few hours.
Residential/Commercial Applications
- Computer rooms/ server rooms
- Room additions/ renovations
- Homes without ductwork
- Kitchen and prep areas in restaurants
- Offices in warehouse spaces or large retail buildings
- Offices and buildings where security concerns prevent the installation of window units
Features
Quick Specs:
Dimensions & Weight | |
Indoor Unit Width: | 31 1/8" |
Indoor Unit Height: | 10 7/8" |
Indoor Unit Depth: | 8 1/2" |
Indoor Unit Net Weight: | 21 lbs. ea. |
Indoor Unit Shipping Weight: | 26 lbs. ea. |
Outdoor Unit Width: | 35 3/8" |
Outdoor Unit Height: | 32 5/8" |
Outdoor Unit Depth: | 13" |
Outdoor Unit Net Weight: | 151 lbs. ea. |
Outdoor Unit Shipping Weight: | 164 lbs. ea. |
Performance Ratings | |
Indoor Model: | 2 x MW12Y3FM |
Outdoor Model: | MR24DY3F |
Capacity Cooling: | 12,000 BTU/h ea. |
Capacity Heating @ 47°F: | 14,000 BTU/h ea. |
Capacity Heating @ 17°F: | 10,500 BTU/h ea. |
HSPF: | 9.0 |
SEER: | 16.5 |
Moisture Removal: | 3.7 Pts/h ea. |
Airflow (Quiet, Low, Med, High): | 215/250/305/355 CFM |
Sound Rating - Indoor: | 30/34/39/42 dB-A |
Sound Rating - Outdoor: | 52 dB-A |
Operating Range - Cool: | 0 - 115°F |
Operating Range - Heat: | 14 - 75°F |
Electrical Data (all indoor units receive power from outdoor unit; values listed are total) | |
Power Source: | 230/208-60-1 |
Min. Ampacity: | 15A |
Cooling Watts: | 2,300W |
Max. TD Fuse/Breaker: | 20A |
Refrigeration System | |
Refrigerant: | R410A |
Compressor Type: | Inverter |
Connections: | Flare |
Liquid Line O.D.: | 1/4" |
Suction Line O.D.: | 3/8" |
Factory Precharge: | 98 ft. |
Max. Line Length: | Each Unit: 82 ft. Total: 98 ft. |
Max. Height Difference: | 33 ft |
