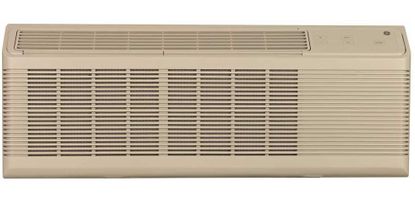

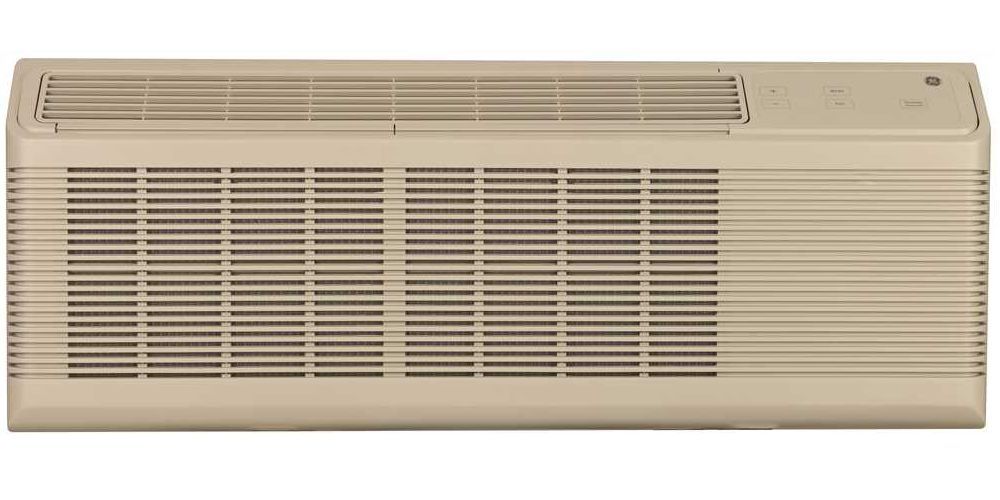

GE Zoneline AZ41E07DAB 7000 BTU 230/208V Heat/Cool PTAC& Digital Electronic Temperature Controls

GE Zoneline AZ41E07DAB 7000 BTU 230/208V Heat/Cool PTAC& Digital Electronic Temperature Controls

Availability:Usually ships in 5-7 business days
Item #:AZ41E07DAB
Add Required 220V Power Cord:
Add Wall Sleeve-RAB71A:
Add Ext Grille-RAG60:
Add Drain Kit-RAD10:
Regular price:$1,313.00
Sale price:
(You Save 22%)
$1,025.00
Quantity:


The GE Zoneline Model AZ41E07DAB is a perfect fit for small rooms up to 250 square feet. It has 7000 BTU's of cooling and runs on 230/208 Voltage. This model offers cooling with electric heat. Please make sure you order the appropriate "required" power cord set when placing your order. The standard size is 20amp (RAK3203) although this model will work with a 15amp (RAK3153) as well. If you are replacing an existing GE or other 42" wide by 16" high PTAC unit then you should purchase the cord that matches your wall outlet configuration. Please call us at 800-891-4729 if you need any assistance placing your order.

GE Zoneline® Packaged Terminal Air Conditioners provide year-round comfort with individual heating and cooling temperature controls. Zoneline units are extremely quiet – and designed to fit a wide range of applications, making them the ideal choice for hotels and motels, office buildings and apartments. Standard on all models is the exclusive GE® “Superseal” system, which reduces air infiltration and increases both comfort and efficiency. All Zoneline units now use R-410A refrigerant which is compliant with 2010 U.S. Environmental Protection Agency requirements for the phase-out of ozone-depleting compounds.

Please select the receptacle plug type as follows:



Deluxe 4100 series cooling with resistance heat

• Most energy-efficient packaged terminal air conditioner in the industry

• R-410A refrigerant - R-410A meets 2010 U.S. Environmental Protection Agency requirements for the phase-out of ozone-depleting hydrochlorofluorocarbons (HCFCs) found in the older R-22 refrigerant.

• Digital controls - LED temperature display

- Easy temperature selection - Tactile touch pads

• Two fan motors

- Improved quiet sound levels - Higher efficiency

• Electronic temperature limiting - Helps reduce operating costs

• Optional corrosion treatment - Reduces the effects of coastal environments

• Freeze Sentinel™ - Protects unoccupied rooms from damage by freezing temperatures

• Heat Sentinel - Reduces excessive temperatures in unoccupied room

• GE-exclusive Superseal

- Increased room comfort

- Energy savings

• Upfront filters

- Ease of cleaning

- Long-lasting nylon mesh

• Central desk control compatibility

• Remote thermostat capability

• Smartfan - Fan cycle operation based on heat/cool selection

• Cross-flow blower



GE Zoneline 230/208V Universal Power Connection Kit (RAK3153)
Retail Price: $65.00
Sale Price: $49.00
GE Zoneline 265/277-Volt Universal Power Supply Kit (RAK5157)
Retail Price: $75.00
Sale Price: $60.00
GE Zoneline Architectural Rear Grille (RAG61,RAG62,RAG63)
Retail Price: $85.00
Sale Price: $79.00
GE Zoneline Internal/External Drain Kit (RAD10)
Retail Price: $35.00
Sale Price: $29.00
GE Zoneline Spare Filters (2) (RAA63)
Retail Price: $55.00
Sale Price: $35.00
GE Zoneline Digital Wall Thermostat (RAK164D1)
Retail Price: $85.00
Sale Price: $65.00
GE Zoneline Programmable Digital Wall Thermostat (RAK164P1)
Retail Price: $95.00
Sale Price: $75.00
GE Universal Cover Label (RAK806)-10 PACK
Retail Price: $250.00
Sale Price: $150.00

The GE Zoneline 4100 Series Heat/Cool and 6100 Series Heat/Pump commercial air conditioner series has taken energy efficiency to a whole new level. Utilizing an "L"-shaped coil design, the new series offers significantly improved efficiency. Select from BTU Sizes ranging from 7000-15000 in both 230/208V and 265V Voltage. All models use a seperate LCDI power cord available in 15amp, 20amp or 30amp. This allows you to easily swap units from one room to another just by using the appropriate line cord to fit the outlet type in the room.

Frequently Asked Questions?

1) What BTU Capacity Should I Choose?

If you are replacing an existing PTAC it is recommended that you replace it with your current BTU size. BTU sizes are primarily calculated based on the overall square footage of your room. It is always best to undersize rather than oversize to get the best efficiency. The following will give you a rough estimate of the BTU size suggested.

Less Than 250 Square Feet: 7000 BTU

250-400 Square Feet: 9000 BTU

400-600 Square Feet: 12000 BTU

600+ Square Feet: 15000 BTU

2) What PowerCord Type Should I Choose?

You must purchase the required power cord for all GE Zonelines as an accessory. GE Zonelines do not include the power cord with the unit Please confirm the plug type when you place the order. This is important because we need to be certain your PTAC unit will have the proper cord so that it fits your existing outlet. We have included a diagram below to show you what the plug outlet looks like.(A 265 Voltage model is also available on special request)

Please select the receptacle plug type as follows:

3) What is the difference between a standard Heat/Cool model and a Heat Pump?

Our standard Zoneline 4100 series models offer cooling with electric heat strip. These models are often used in colder climates where the average outside temperature is well below freezing. The premium Zoneline 6100 series models offer cooling with a Heat Pump. Heat Pumps are often used in warmer climates where the average outside temperature is above freezing. Heat Pumps are very energy efficient because it transfers heat from the outside into the room instead of using the electric heat however all 6100 Series Heat Pump models also include backup emergency electric heat which will kick in when the outside temperature dips below freezing and can no longer be supported by the Heat Pump.

4) Will the GE Zoneline PTAC fit my existing wall sleeve?

As long as your existing wall sleeve is 42" wide by 16" high which is the universal standard size for all PTACs including Carrier, Amana, Trane, LG, Friedrich, Sanyo it will fit your existing wall sleeve without the need of changing the wall sleeve or exterior grille. Please note although the overall dimensions are the same extra insulation may be needed to be installed around the perimeter in some cases.

5) What is the warranty on the GE Zoneline PTAC?

GE offers a one (1) year manufacturer warranty parts and labor included. A five (5) year manufacturer warranty is also included on the compressor and sealed refrigeration. You have an option of extending the manufacturer warranty at time of purchase. The extended warranty is only available to residential homeowners. Commercial and rental apartments extended warranties are also available on request.

6) Who do I call when I need service on my GE Zoneline?

During the initial one (1) year warranty period, you may contact GE direct at 1(800)GE CARES to find a local GE authorized servicer in your area.

7) Ok I am ready to order my new GE Zoneline PTAC. How will it ship?

We ship all GE Zoneline PTACs via a trucking company. The trucking company will contact you at least 24 hours before delivery to arrange a delivery appointment. Please note all deliveries unless pre-approved are considered "curbside" only and no liftgate or inside delivery will be available. Please allow at least 7 days for delivery unless otherwise indicated.

Now hopefully all your questions are answered and you are ready to place your order. If not please feel free to contact us. We offer a easy, safe and secure web checkout system. We accept Mastercard, Visa, Discover and AMEX.
